When it comes to high-performance Variable Frequency Drives (VFDs), Yaskawa remains one of the most trusted names in industrial automation. At Lakeland Engineering Equipment Company, we proudly offer a wide selection of Yaskawa drives — including their flagship models, the GA800 and GA500. While both drives offer outstanding performance and reliability, each is engineered for different applications and environments.
So, which one is right for your operation? Let’s break it down.

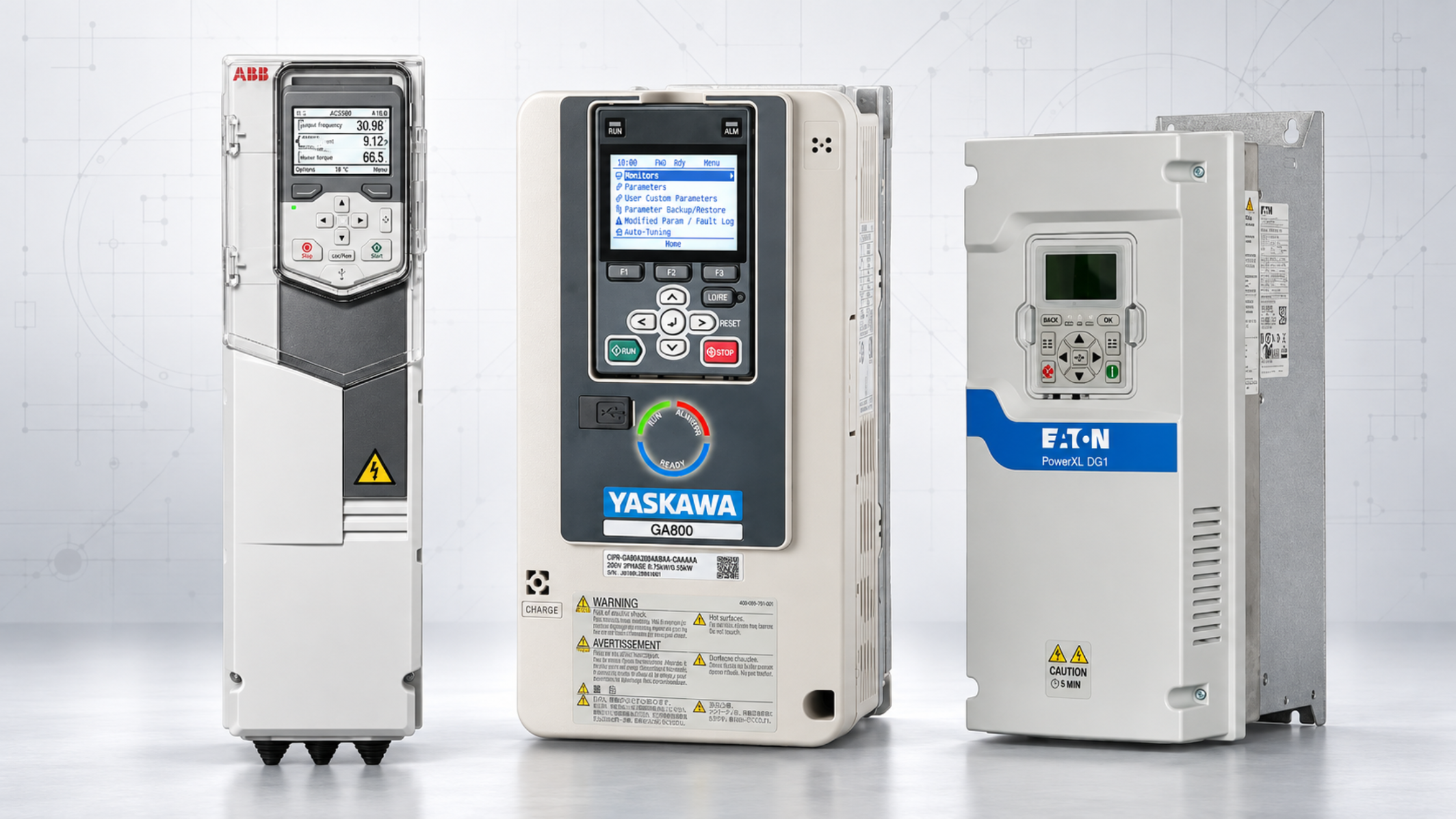

GA800: Power, Performance, and Flexibility for Demanding Applications
The Yaskawa GA800 is designed for medium-voltage, heavy-duty industrial applications. It’s ideal for users who need a robust, full-featured drive that can handle complex motor control, high horsepower, and a wide range of network protocols.
Key Features:
- Horsepower Range: 1 to 600 HP (240V–480V)
Overload Capability: 150% for 60 seconds (Heavy Duty)
Motor Compatibility: Handles induction, permanent magnet, and synchronous reluctance motors.
Environment: Built-in conformal coating and wide temperature range up to 122°F.
Connectivity: Native support for EtherNet/IP, Modbus TCP, PROFINET, and more.
Safety: SIL3/PL-e Safe Torque Off standard.
Why Choose GA800?
If your application requires maximum flexibility, advanced motor control, or high reliability in tough conditions, the GA800 is your go-to solution.

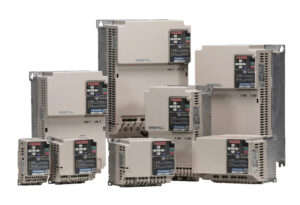

GA500: Compact, Efficient, and Built for OEM Simplicity
The Yaskawa GA500 packs advanced capabilities into a compact frame. It’s designed for light to medium-duty applications where space, ease of use, and integration are key.
Key Features:
Horsepower Range: Up to 40 HP (240V–480V)
Compact Design: 50% smaller footprint than the GA800
Programming Ease: Built-in keypad with Bluetooth for wireless setup via mobile app
Customizable Parameters: More than 600 adjustable settings for tailored performance
Plug-and-Play: Compatible with single-phase and three-phase motors
Quick Start Wizards: Easy startup for OEMs and integrators
Why Choose GA500?
For panel builders, machine manufacturers, and applications where space and cost are critical, the GA500 delivers outstanding performance without the complexity.
Side-by-Side Comparison
| Feature | GA800 | GA500 |
|---|---|---|
| Horsepower | 1 – 600 HP | Up to 40 HP |
| Motor Compatibility | Induction, PM, SynRM | Induction, PM |
| Network Support | Advanced protocols built-in | Optional communication cards |
| Size/Form Factor | Larger, rugged enclosure | Ultra-compact design |
| Application Type | Heavy-duty industrial | Light/medium-duty OEM |
| Key Advantage | Advanced motor control | Space-saving & easy setup |
Get in Touch with Lakeland's Drive Specialist
Not sure which Yaskawa drive is the right fit? The team at Lakeland Engineering Equipment Company is here to help. With over 70 years of experience in automation solutions and electrical components, we offer:
In-stock Yaskawa GA800 and GA500 drives
Expert engineering consultation and technical support
Fast delivery and personalized customer service
Whether you’re upgrading an existing system or designing a new one, Yaskawa drives provide the performance and reliability you need. Contact Lakeland today to find the right VFD for your application — and get it delivered quickly, configured correctly, and supported by experts who care.
